Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings

Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings
Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings

Large Image :  Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings

Product Details:

Place of Origin: China
Brand Name: MM-Tech
Certification: ISO
Model Number: SWT-V450/200H

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 4800USD
Packaging Details: CARTON
Delivery Time: 3
Payment Terms: T/T, Western Union
Supply Ability: 5000
Detailed Product Description
Voltage: 220V PIPE SIZE: 8-18 Inch
Frequency: 50/60Hz PACKAGE: WOODEN CASES
PAYMENT: Western Union,PayPal, T/T

8-18" 450 hdpe Fitting Pipe Welding Machinery

NOTE!!!



As our welding machine is weight and air freight is very expensive ,



so we just provide free shipping with you by sea .



If you prefer to by air , Pls tell us before payment so that we can charge the air freight for you .



Thank you in advance .



Consists of basic frame, hydraulic unit, electric planning tool,heating plate, support for planning tool and heating plate.



Product Overview

1.Suitable for butt welding of thermoplastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.

Product Features


1. Used to fusion joint PE/PP/PVDF pipes/fittings in a jobsite or workshop.
2. Four main clamps made of light weight alloy.
3. Removable heating plate with high quality non-stick PTFE coating
4. Low temperature difference in heating plate surface, within 5 degree
5. Imported oil seal & hydraulic couplers
6. A mechanical lock excludes the disengagement of the trimmer during the operation

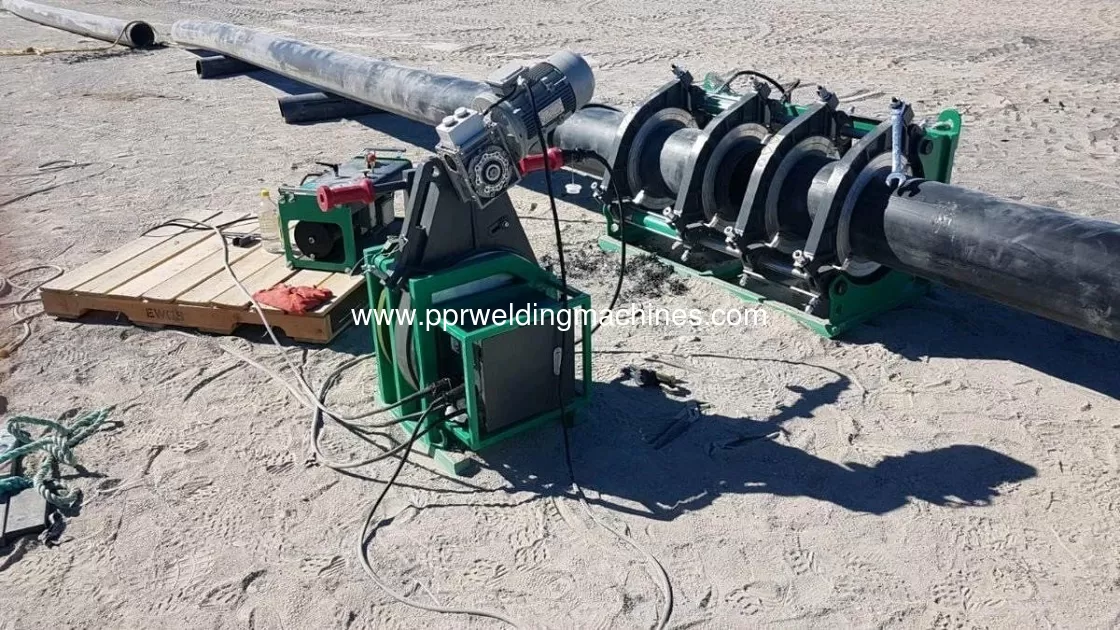

Images of high density polyethylene Pipe Jointing Machine:



Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings 0

Technical Parameters For Butt Fusion Welding equipment of PE Pipes:



Welding Range

8"-18"

Reducing Inserts 8inch-10inch-12inch-14inch-16inch
Ranges of application PE,PP and PVDF
Working voltage ~380V ±10%,50/60Hz
Total power 8.38 KW
Planning tool 1.5 KW
Heating plate 5.38 KW
Hydraulic unit motor 1.5KW
Environment temperature -10° ~ 45°

Packaging of Butt-fusion jointing of polyethylene (PE) pipes:

315mm (2)



Application of welding of polyethylene piping by thermofusion :

hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.

automatic butt welding machine can be operated in any complex work condition.

thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.

Butt Fusion Welding Machine weld PE/PP/PVDF pipes and fittings 2
