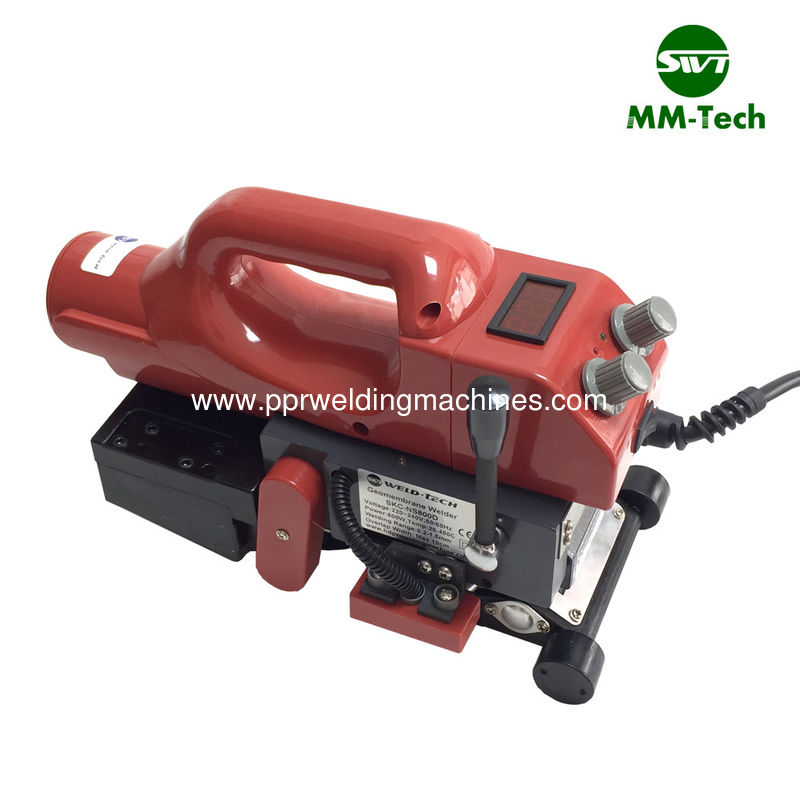

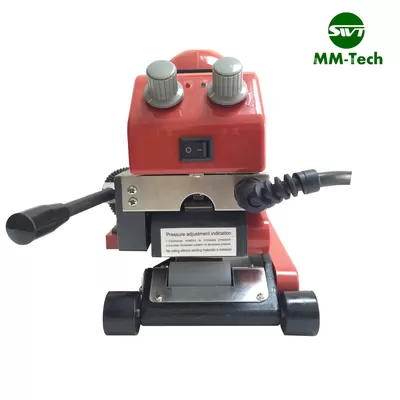

SWT-NS800D Anti-seepage geomembrane welding equipment with pvc

SWT-NS800D Anti-seepage geomembrane welding equipment with pvc
SWT-NS800D Anti-seepage geomembrane welding equipment with pvc SWT-NS800D Anti-seepage geomembrane welding equipment with pvc SWT-NS800D Anti-seepage geomembrane welding equipment with pvc SWT-NS800D Anti-seepage geomembrane welding equipment with pvc

Large Image :  SWT-NS800D Anti-seepage geomembrane welding equipment with pvc

Product Details:

Place of Origin: CHINA
Brand Name: MM-Tech
Model Number: SWT-NS800D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1200/set
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: ≤10sets——7days
Detailed Product Description
Brand: MM-Tech Model: SWT-NS800D
Power: 800w Overlap Width: 10cm
Welding Speed: 1.5-5.0m/min Temperature: 20-450℃ Adjustable
Seam Width: 12.5mm*2 Interior Cavity 12mm Welding Thickness: 0.2-1.5mm
Warranty: 2 Years Application: HDPE,PVC,PP,etc
Voltage: 110V/220V Frequency: 50-60HZ
Weight: 5kg


Description of Hot Wedge Welder

SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.

It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.



International warranty 24months.

Any parts broken or does not work under normal operating,we are free to provide.



Technical Parameters For Geomembrane hot wedge welder SWT-NS800D

Voltage: 220V
Frequency: 50/60Hz
Power: 800W
Welding Speed: 0.5-5 m/min
Heating temperature: 20~450°C
Thickness of material to be welded: 0.2mm-1.5mm
Welding width: 12.5mm×2
Interior Cavity: 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction)
Overlap width: 10cm
Weight 5kg
Insulation class class II


Images of Hot Wedge Welder:

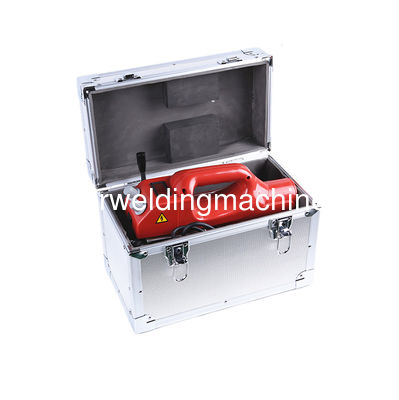

DSC_3814.JPG Each set includes: machine + extra hot wedge + silica gel pressure roller + disassembly tools + fuses + manual book + aluminum box + carton




FEATURE

we offer two sets of pressure rollers with the machine:SILICA GEL PRESSURE ROLLER and STEEL PRESSURE ROLLER.

silica gel pressure roller used for PVC membrane or thin membrane.

steel pressure roller used for HDPE, LDPE PP membrane or thick membrane.

spare part (2).jpgspare part (3).jpg

Packaging of geomembrane welding wedge welders hot air weld machine:

HDPE geomembrane.jpg



PACKING SIZE: 370 * 240* 285 mm

Weight: 9kg/5Kg

We have the machines in stock. we can send as soon as we receive the payment. we can send via DHL,TNT,UPS,FEDEX,EMS. it takes about 5-10 days to arrive in your office.
The payment can be: Alibaba, bank transfer, western union, PAYPAL.


TIM20191226091516_.jpg1 (142)_.jpg



Application of Hot Wedge Welding Machine:

Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP .

Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.


hdpe geomembrane welder.jpg



more products.jpg
