SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material

SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material

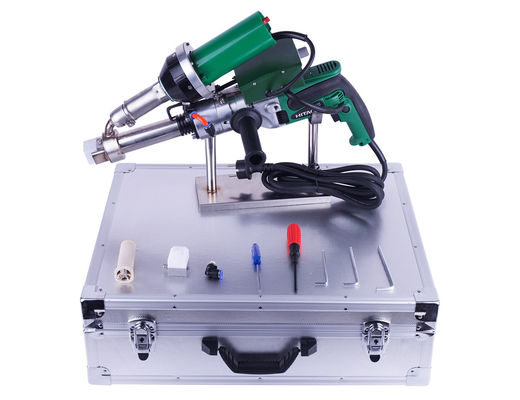

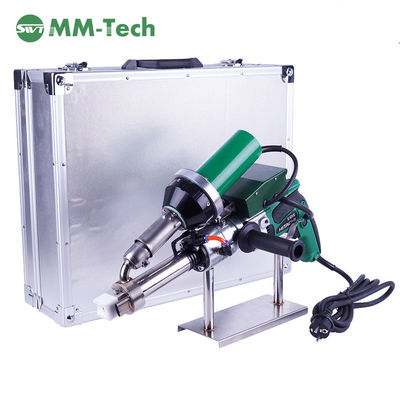

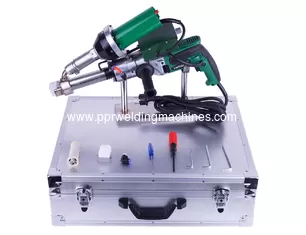

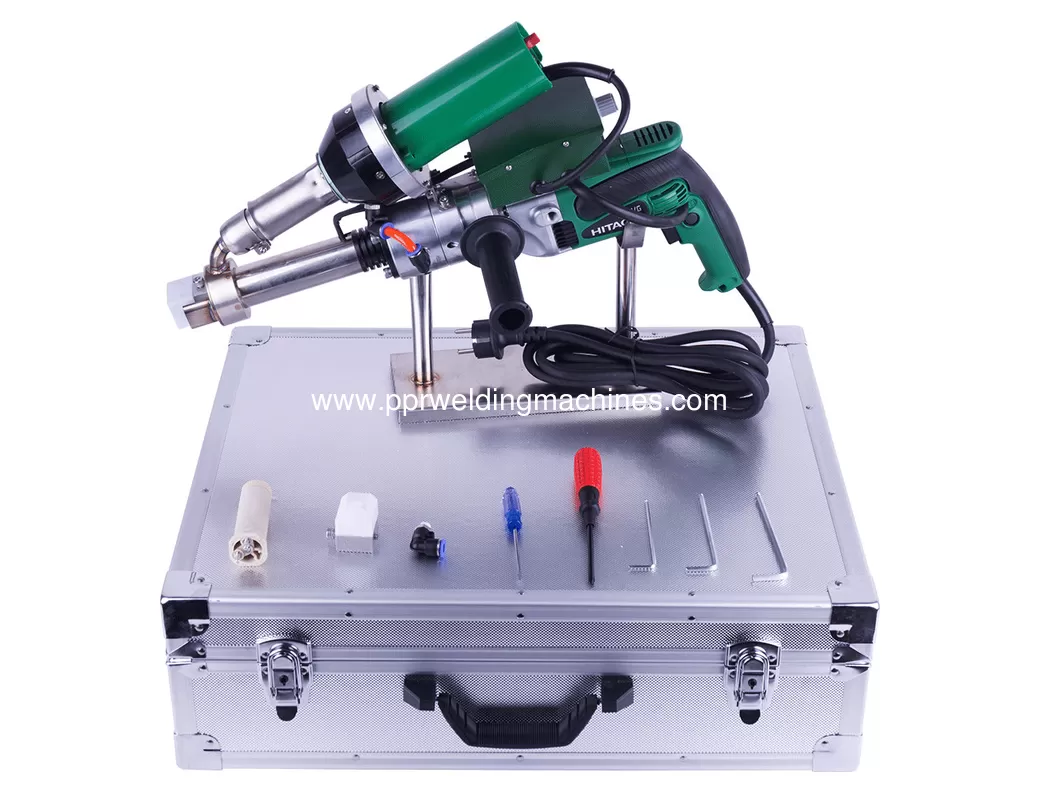

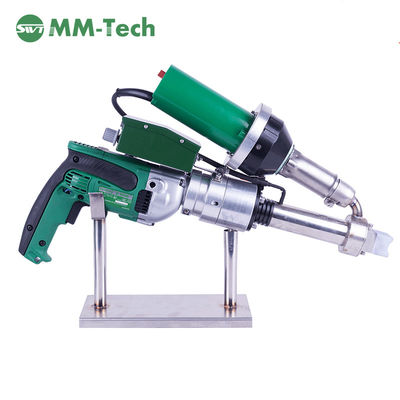

Large Image :  SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material

Product Details:

Place of Origin: CHINA
Brand Name: MM-Tech
Certification: CE
Model Number: SWT-NS600A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1400/set
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: ≤10sets——7days
Contact Now
Detailed Product Description
Model: SWT-NS600A Extrusion Welder Warranty: 2 Years
Welding Speed: 2.0kg/h Thickness Of Material: 1-20mm
Weight: 6.5kg Place Of Origin: China
For Application Range: Manufacturing Plant

Introduction
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 0

This plastic extrusion welder is the first one in China that has functions of double independent heating systems, digital display
controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE,PP,PVC,PVDF and other
hot melt material.
Description of
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 1
Model
SWT-NS600A
Voltage
220V/110V
Frequency
50/60 Hz
Extruding Motor Power
3400 W
Hot Air Power
800 W
Welding Rod Heating Power
20-600 ℃
Air Temperature
200-380 ℃
Extruding Volume
2.0Kg/h
Welding Rod Diameter
3.0-4.0 mm
Driving Motor
HITACHI
N.W
6.5Kgs
G.W
13Kgs
Features
1. Double heating system: welding rod feed heating system and hot air heating system make sure the best welding quality. 2. Digital display controller microcomputer chip contoller makes easy operation. 3. 360 degree rotating welding head: the 360 degree rotating welding head: the 360 degree rotating hot air welding nozzle can be applied to different needs. 4. Motor cold start protection : extruding motor well shut down automatically if it has not reached the preset melting temperature, which avoid lose caused by operating mistake. 5. Driving motor: HITACHI
Application
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 2
Operation Video
00:00

00:37

After-Sales Service
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 3


We always provide high quality products and workable price for every clients and have won the trust and approval.

Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free.
Clara Qing
WhatsApp :+86 15651893783
Email: sales1@peweldingmachine.com
Other Products
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 4



SWT-GM1

SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 5



SWT-WP1

SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 6



SWT-TAC

Introduction
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 7

This plastic extrusion welder is the first one in China that has functions of double independent heating systems, digital display
controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE,PP,PVC,PVDF and other
hot melt material.
Description of
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 8
Model
SWT-NS600 A
Voltage
220V/110V
Frequency
50/60 Hz
Extruding Motor Power
1600 W
Hot Air Power
800 W
Welding Rod Heating Power
20-600 ℃
Air Temperature
200-380 ℃
Extruding Volume
2.5 Kg/h
Welding Rod Diameter
3.0-4.0 mm
Driving Motor
HITACHI
N.W
6.5Kgs
G.W
13Kgs
Features
1. Double heating system: welding rod feed heating system and hot air heating system make sure the best welding quality. 2. Digital display controller microcomputer chip contoller makes easy operation. 3. 360 degree rotating welding head: the 360 degree rotating welding head: the 360 degree rotating hot air welding nozzle can be applied to different needs. 4. Motor cold start protection : extruding motor well shut down automatically if it has not reached the preset melting temperature, which avoid lose caused by operating mistake. 5. Driving motor: HITACHI
Application
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 2
Operation Video
00:00

00:17

After-Sales Service
SWT-NS600A 1600w Plastic extrusion welder for HDPE Geomembrane with PVDF material 10


We always provide high quality products and workable price for every clients and have won the trust and approval.

Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free.
