4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine

4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine
4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine 4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine

Large Image :  4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine

Product Details:

Place of Origin: Hebei,China
Brand Name: MM-TECH
Certification: CE,ISO
Model Number: SWT-PH5000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD24200-USD28600 per set
Packaging Details: Wooden Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per week
Detailed Product Description
Condition: New Range Of Stickness: 3-30 Mm
Max Lengh: 5000 Mm Automation: Semi-auto
Warranty: 2 Years Weight: 1950kg
Voltage: 380V Dimension: 5850*1200*1200
Package Meas: 6000*1300*1450 Scope Of Application: PP,PE,PVC,PVDF,PPN
Function: Rolling And Welding Product Name: Sheet Butt Fusion Welding Machine

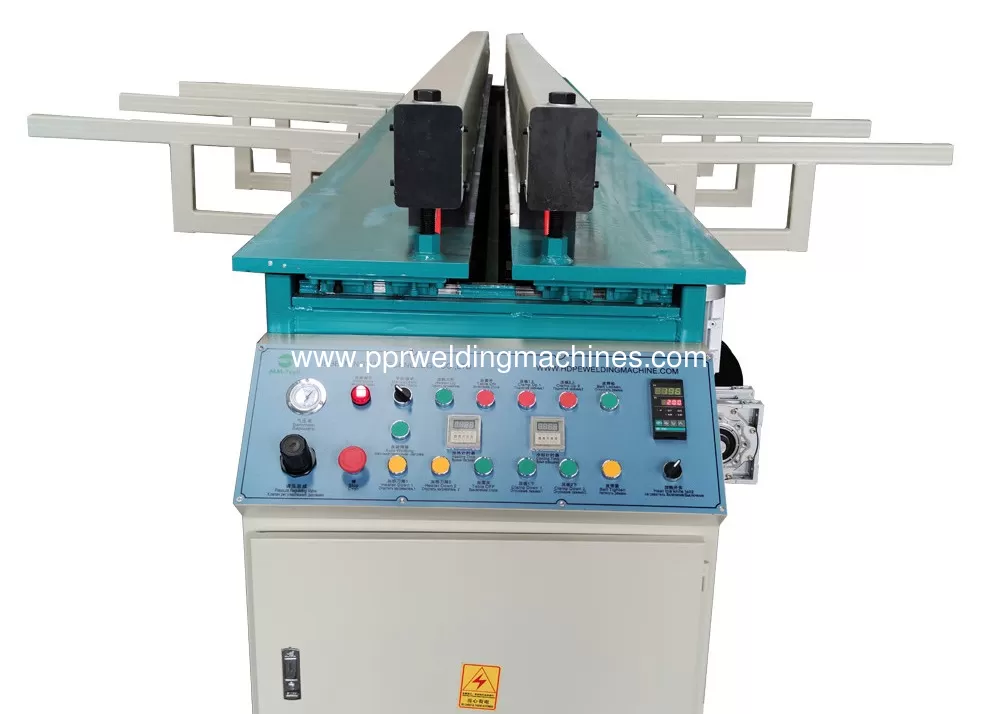

SWT - PH5000 5000 mm Smart Operation PE Sheet Butt Fusion Welding Machine



Sheet Butt Fusion Welding Machine Application:



CNC automatic butt fusion machines, suitable for welding thermoplastic sheets.These machines can be easily operated both horizontally and vertically, which allow to perform different types of weld (horizontal, circular and vertical joints). CNC welders for joining thermoplastic sheets made of HDPE, PP, PVC, PVDF.



Sheet Butt Fusion Welding Machine Specification:



Specification/Size SWT-PH5000
Weldable sheet thickness(mm) 3.0-30.0
Max working length(mm) 5000
Roll circle diameter minimum(mm) 550
Air pressure(kg.f/cm²) 6.0-8.0
Energy source(m³/min) 0.0068
Rated voltage(V) 380V
Rated current(A) 13.6A
Heating Power(kW) 10kW
Rolling Motor Power(kW) 1.5kW
Heating mode Overall heating
Drum institutions motor power Optional
External dimensions(L*W*H) mm 5850*1200*1200
Packing dimensions(L*W*H )mm 6000*1300*1450
N.W KGS 1800kg
G.W KGS 1950kg



Sheet Butt Fusion Welding Machine Features:



  • Versatile use:Welding function and bending function are both available in our model.
  • Efficient and accurate:Siemens control system and touch screen control mode make the control efficient and accurate.
  • Easy to use:Our strong point are to design easy-to-use equipments, not complicated ones.You can finish every function within 5 steps with our model.
  • Wide applicability:Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
  • Stable performance:With most-to-up technology and top designers we successfully design and manufacture for customers.The plates processed by our model have good-looking appearance and the angle is very strong.
  • Easy-to-maintain:It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.

4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine 0

Package:



4000mm Automatic Plastic Sheet Hdpe Plate Butt Pp Welder Machine 1



After-Sales Service:



We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free
