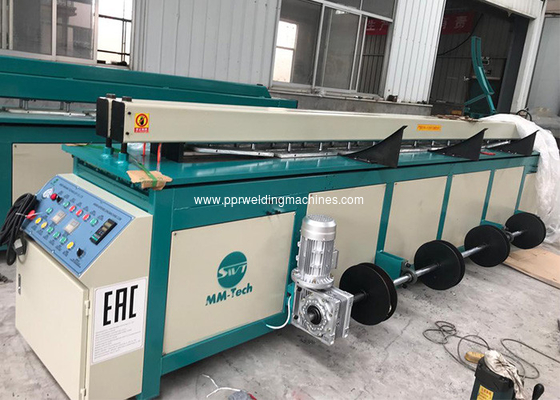

SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price

SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price
SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price

Large Image :  SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price

Product Details:

Place of Origin: Hebei,China
Brand Name: MM-TECH
Certification: CE,ISO
Model Number: SWT-PH6000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD31900-USD37700 per set
Packaging Details: Wooden Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per week
Detailed Product Description
Scope Of Application: PP,PE,PVC,PVDF,PPN Function: Rolling And Welding
Product Name: Sheet Butt Fusion Welding Machine Range Of Stickness: 3-30 Mm
Max Lengh: 6000 Mm Automation: Semi-auto
Warranty: 2 Years Weight: 2100kg
Condition: New Voltage: 380V
Dimension: 6900*1200*1200 Package Meas: 7050*1300*1450

SWT - PH6000 Automatic with CE Certification Plastic Sheet Butt Fusion Welding Machine


Packaging & Delivery:


Selling Units:Single item

Single package size:705*130*145 cm

Single gross weight:1950 kg

Package Type:Wooden Box
Lead Time:

Quantity(Sets)1 - 10>10
Est. Time(days)30To be negotiated


Sheet Butt Fusion Welding Machine Specification:


Specification/SizeSWT-PH6000
Weldable sheet thickness(mm)3.0-30.0
Max working length(mm)6000
Roll circle diameter minimum(mm)550
Air pressure(kg.f/cm²)6.0-8.0
Energy source(m³/min)0.0075
Rated voltage(V)380V
Rated current(A)13.6A
Heating Power(kW)12kW
Rolling Motor Power(kW)1.5kW
Heating modeOverall heating
Drum institutions motor powerOptional
External dimensions(L*W*H) mm6900*1200*1200
Packing dimensions(L*W*H )mm7050*1300*1450
N.W KGS1900kg
G.W KGS2100kg


Sheet Butt Fusion Welding Machine Features:
1.Versatile use:
Welding function and bending function are both available in our model.
2.Efficient and accurate:
Siemens control system and touch screen control mode make the control efficient and accurate.
3.Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
4.Wide applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
5.Stable performance:
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
6.Easy-to-maintain:
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.

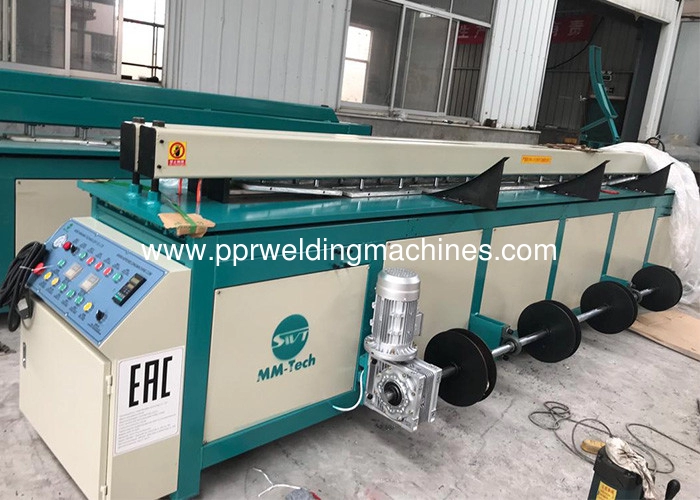

SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price 0
Package:

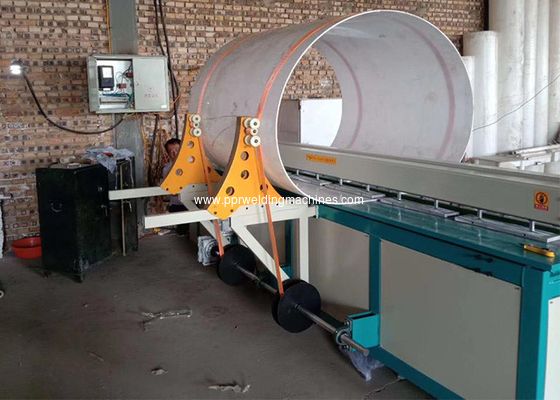

SWT-PH6000 6000mm Automatic Plastic Sheet HDPE Plate Butt PP Welder Machine Price 1
