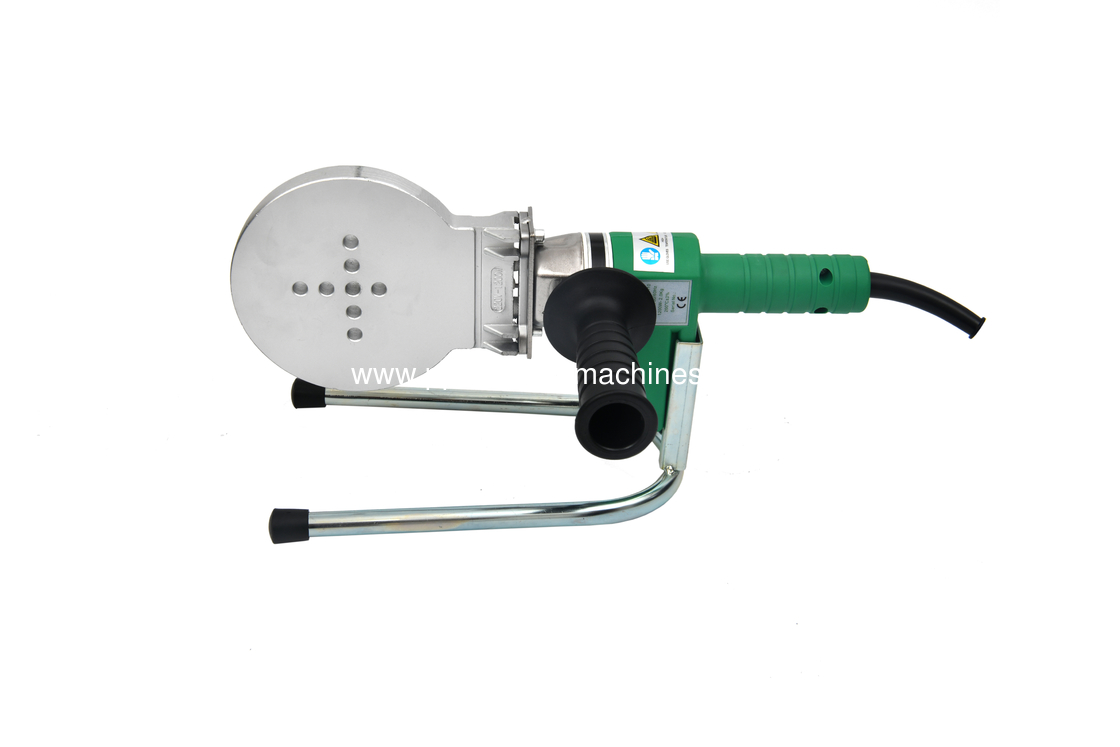

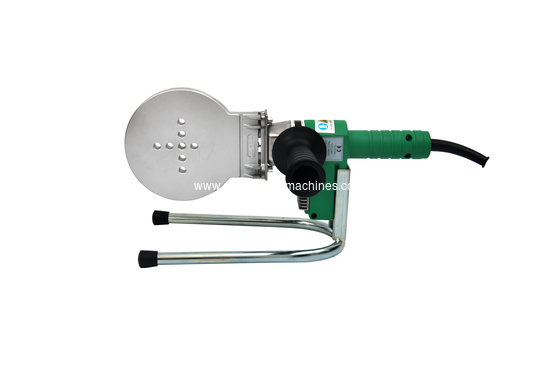

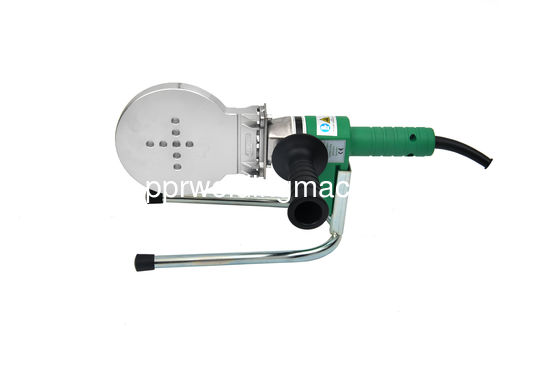

Poly Pipe Welder,Ppr Plastic Pipe Welding Machine Socket Fusion Tool

Poly Pipe Welder,Ppr Plastic Pipe Welding Machine Socket Fusion Tool
Poly Pipe Welder,Ppr Plastic Pipe Welding Machine Socket Fusion Tool Poly Pipe Welder,Ppr Plastic Pipe Welding Machine Socket Fusion Tool

Large Image :  Poly Pipe Welder,Ppr Plastic Pipe Welding Machine Socket Fusion Tool

Product Details:

Place of Origin: Hebei,China
Brand Name: MM-Tech
Certification: ISO,CE
Model Number: ZRJQ-110

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD180-USD200 per set
Packaging Details: Carton Package
Supply Ability: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Product Name: Socket Fusion Welding Machine Condition: New
Input Voltage: 220V Working Temperature: 300℃
Warranty: 2 Years Power: 1200W
Welding Size: 75-110mm Certification: ISO, Ce
Usage: Pe. Pp. Ppr Pipe After-sales Service Provided: Engineers Available To Service Machinery Overseas

ZRJQ-110 75 - 110mm Heat Fusion Welding Machine For Hdpe Pp Ppr Pipe

About US:

MM-Tech has the formidable technical team and strict quality control along with first-class after sale service . All the products have high quality and stable performance.
With strong relationships and good credit,we cooperate closely to develop the global markets together.
Facing the challenges, we'll turn pressure into force, take root in the market demand,insist credit management and promote the brand connotation of safety and convenience. Moreover we'll also abide by the strategy of continuous development.
With our excellent products, competitive prices and perfect services,we hope that we will establish long and friendly business relationships with you in near future. If you are interested in any of our products, or require any further information, please feel free to contact us today.


Socket Fusion Machine Introduction for Use:

  • Apply die head
  • Place the welding machine on the stander, chose die head according to pipe's diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
  • Power on
  • Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
  • Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
  • Fusion pipes
  • Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert

Socket Fusion Machine Specification:


Rated Voltage 220V/110V
Rated Frequency 50Hz/60Hz
Rated Power 1200W
Working Temperature 260℃
Tolerance of Temperature 5℃
Warning Temperature 295℃
Welding size 75,90,110mm
SUITABLE MATERIAL PPR,PE,PB
Net weight 2KG
Machine dimension 370*125*50(mm)
QTY/CTN 2SETS
G.W: 20.5KGS


Socket Fusion Machine Application and Feature:

  • Suitable for socket welding pipes and fitting made of PE or PP,PB
  • Preprogrammed welding parameter enables to choose the heating time by inputting out diameter of pipe to be welded.
  • Socket fusion is the oldest and most economical method of fusing.
  • Socket fusion is used for gas, plumbing, water, waste water, industrial piping, mining and oil patch applications.
  • The structure design complies with DVS2208
  • Limited two-year warranty.
