|Product Name:||Sheet Butt Fusion Welding Machine||Dimension:||2800*1200*1200|
|Range Of Stickness:||2-20 Mm||Max Lengh:||2000 Mm|
|Scope Of Application:||PP,PE,PVC,PVDF,PPN||Function:||Rolling And Welding|

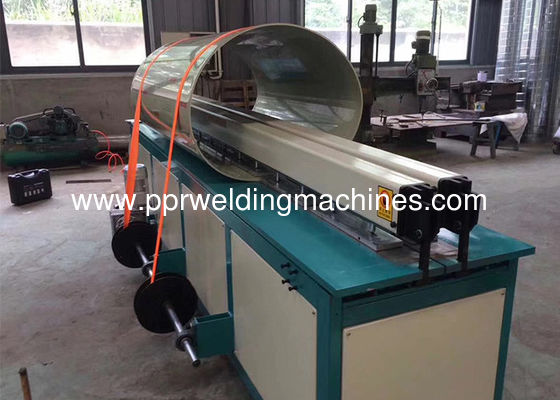

SWT - PH3000 Smart Operation with CE Certification PE Sheet Butt Fusion Welding Machine
Sheet Butt Fusion Welding Machine Application:
Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.
Sheet Butt Fusion Welding Machine Specification:
|Weldable sheet thickness(mm)||3.0-30.0|
|Max working length(mm)||3000|
|Roll circle diameter minimum(mm)||400|
|Rolling Motor Power(kW)||1.5kW|
|Heating mode||Overall heating|
|Drum institutions motor power||Optional|
|External dimensions(L*W*H) mm||3750*1200*1200|
|Packing dimensions(L*W*H )mm||3900*1300*1450|
Sheet Butt Fusion Welding Machine Features:
Welding function and bending function are both available in our model.
2.Efficient and accurate:
Siemens control system and touch screen control mode make the control efficient and accurate.
3.Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
