Product Details:
Payment & Shipping Terms:
|
| Body Maetrial: | Steel Bottom & Frame | Color: | Green |
|---|---|---|---|
| Standard: | DVS2207-1 | Guarantee Period: | 2years |
| Voltage: | 220V,50/60Hz | Power(w): | 12.35 KW |
Consists of basic frame, hydraulic unit, electric planning tool,heating plate, support for planning tool and heating plate.
NOTE!!!
As our welding machine is weight and air freight is very expensive ,
so we just provide free shipping with you by sea .
If you prefer to by air , Pls tell us before payment so that we can charge the air freight for you .
Thank you in advance .
Product Features
| FEATURES |
| 1. Used to fusion joint PE/PP/PVDF pipes/fittings in a jobsite or workshop. |
| 2. Four main clamps made of light weight alloy. |
| 3. Removable heating plate with high quality non-stick PTFE coating |
| 4. Low temperature difference in heating plate surface, within 5 degree |
| 5. Imported oil seal & hydraulic couplers |
| 6. A mechanical lock excludes the disengagement of the trimmer during the operation |
Product Detailed
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly.
Welding ranges: 315mm-630mm
(315,355,400,450,500,560,630mm)
Range of application: PE,PP and PVDF
Working voltage: ~380V ±10%,50Hz
Total power: 12.35kW ,
planning tool:1.5 kW, heating plate:9.35 kW,hydraulic unit motor: 1.5KW,crane power (option):1.1KW
PTFE coated heating plate, digital temperature controller,
difference in heating plate surface temperature ≤±3°, handy operation.
Environment temperature: -10° ~ 45°
Whole machine consists of basic frame, heating plate, planning tool, and support (for planning tool & heating plate)

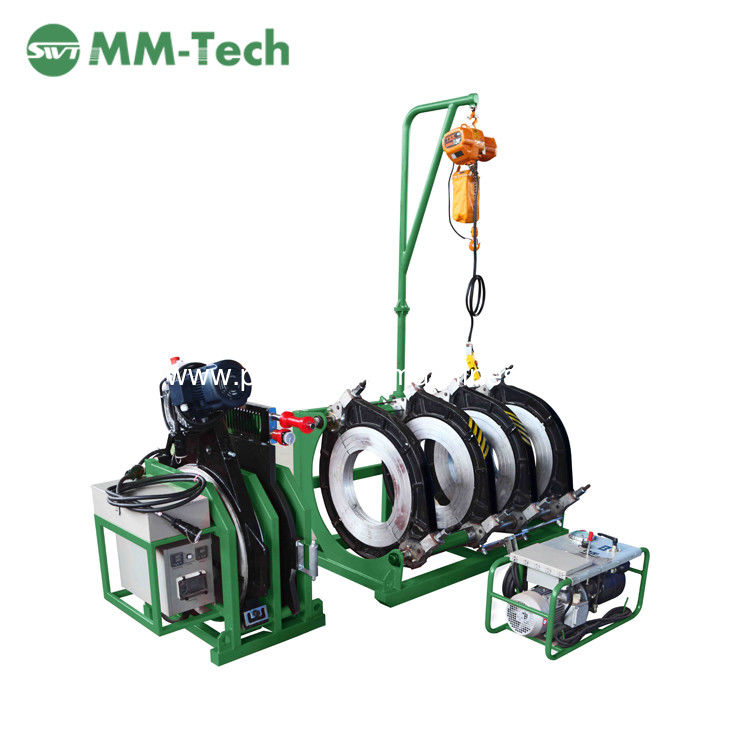

Images of Manual high density polyethylene Pipe Jointing Machine:
Packaging of Butt-fusion jointing of polyethylene (PE) pipes:
Application of welding of polyethylene piping by thermofusion :
hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.
automatic butt welding machine can be operated in any complex work condition.
thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
