| Body Maetrial: | Steel Bottom & Frame | Color: | Green |
|---|---|---|---|
| Standard: | DVS2207-1 | Guarantee Period: | 2years |
| Voltage: | 220V,50/60Hz | Power(w): | 8.38 KW |
SWT-B450/200H Hydraulic Butt Fusion Welding Machine
Application and Features
1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.

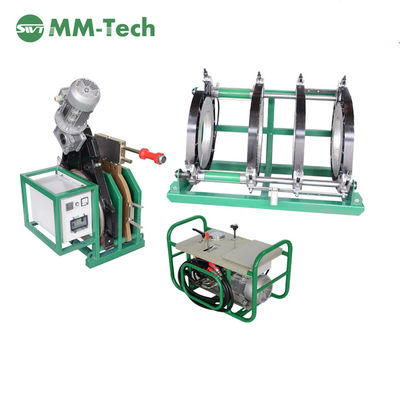

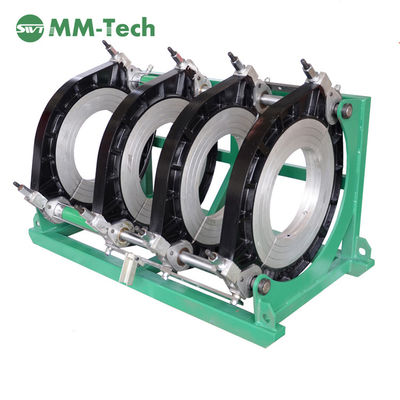

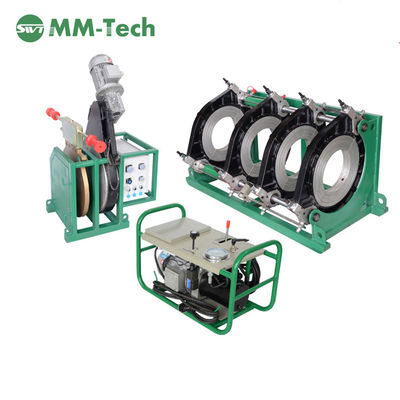

2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.
Optional parts:
1. Tube end device for short flange.
2. Data logger.
Technical Parameters
| Pipe size(mm) | 200,225,250,280,315,355,400,450 | Heating plate max. temp. | 270°C |
| Working voltage | 380V,3P,50/60Hz | Heating plate power | 5.38KW |
|
Temp. deviation in surface (170-250°C) |
<±7°C | Hydraulic unit power | 1.5KW |
| Pressure adjustable Ranges | 0-8.0Mpa | Planing tool Power | 1.5KW |
| G.Weight/PKG | 560Kg/4 Wooden Case | Crane Power(option) | 1.1KW |
| Volume | 3.16CBM | Total power | 8.38KW |
