Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Butt Welder | Weld Able Material: | PE,PP,PPR,PVDF |
|---|---|---|---|
| Working Range: | 200-450 | Power Supply: | 400V |
| Total Absorbed Power: | 8.3KW | Warranty: | 2 Years |
| Weight: | 476KG | Usage: | Plastic Welding |
| Condition: | New | Frequency: | 50HZ/60HZ |
| Piston Area: | 22.37 | After-sales Service Provided: | Online Support,Video Technical Support |

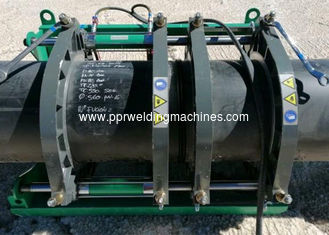

200 - 450 MM with CE Certification PE Pipe Automatic Butt Welder
Automatic Butt Welder Introduction:
Suitable for welding of plastic pipes and fittings made from PE,PP & PVDF . Be made of Aluminium material. Consists of planning tool, Heating Plastic, Basic Frame, Hydraulic unit and Support.
Automatic Butt Welder Specification:
| Welding Range | 200mm-450mm |
| Reducing Inserts | 200mm-225mm-250mm-280mm-315mm-355mm-400mm-450mm |
| Ranges of Application | PE,PP and PVDF |
| Working Voltage | 400V±10%,50/60Hz |
| Total Power8 | 8.30KW |
| Heating Plate | 5.30KW |
| Planning Tool | 1.5KW |
| Hydraulic Unit Motor | 1.5KW |
| Environment Temperature | -10°~45° |
Automatic Butt Welder Features:
Safe, reliable and more powerful.
Rothenberger design patent for frame, ergonomic, robust and reliable.
Powerpac power control unit provides safety and stability.
Precise temperature control and small deviation on the heating plate surface to apply high welding standard.
Precise, reliable and powerful planing tools to ensure high welding quality.
Single inserts as the option to ensure higher connection allignment.
SWT-V450A includes:
A machine body with 4 clamps and 1 automatic console with quick connector;
A Teflon coated heating plate with separate temperature control system;
Self detaching device: helps removing the heating plate after soaking process;
A electrical milling cutter;
Hydraulic hoses with quick couplings;
Support for milling cutter and heating plate.
Workshop:
FAQ:
Q1: Are you manufacturer or trading company?
A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.
Q2: Can you produce based on our drawing & sample? We may also need our logo on it.
A: Yes, of course. We do OEM & ODM services. And definitely you can have logo on it.
Q3: What is the delivery time for bulk production?
A: About 30 days.
Q4: What about payment?
A: Usually we may ask for 30% T/T deposit and 70% T/T balance at the sight of B/L copy.
Q5: How do you control quality?
A: Under management of ISO9001 system, we check every process of production.
