Payment & Shipping Terms:
|Voltage:||220V||PIPE SIZE:||50-160 Mm|
|PAYMENT:||Western Union,PayPal, T/T|
BUTT FUSION WELDING MACHINE are also called HDPE PIPE JOINTING MACHINE ,Polypropylene pipes thermofusion welding equipment,hydraulic termofusion joining for polyethylene pipes and pipe fittings,HDPE Butt Welding Equipment,Butt Welders,butt fusion welder,high density polyethylene Pipe Jointing Machine,Butt Fusion Welding equipment of PE Pipes,Butt-fusion jointing of polyethylene (PE) pipes,welding of polyethylene piping by thermofusion, thermoplastic welding equipment,
As our welding machine is weight and air freight is very expensive ,
so we just provide free shipping with you by sea .
If you prefer to by air , Pls tell us before payment so that we can charge the air freight for you .
Thank you in advance .
1.Suitable for butt welding of thermoplastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.
|1. Used to fusion joint PE/PP/PVDF pipes/fittings in a jobsite or workshop.|
|2. Four main clamps made of light weight alloy.|
|3. Removable heating plate with high quality non-stick PTFE coating|
|4. Low temperature difference in heating plate surface, within 5 degree|
|5. Imported oil seal & hydraulic couplers|
|6. A mechanical lock excludes the disengagement of the trimmer during the operation|

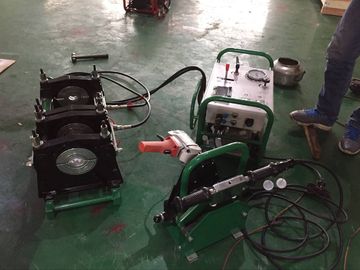

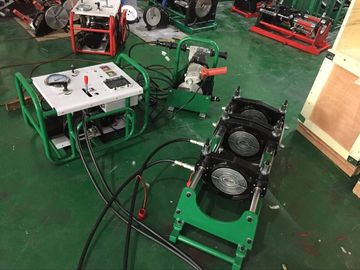

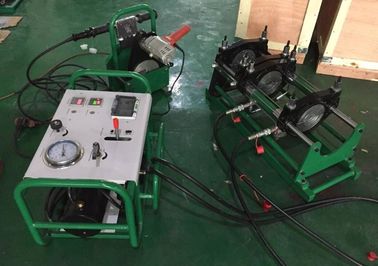

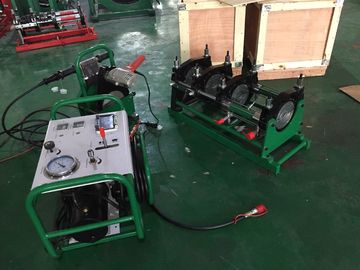

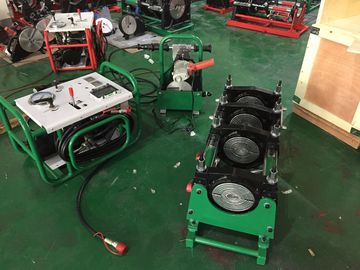

Images of high density polyethylene Pipe Jointing Machine:
Technical Parameters For Butt Fusion Welding equipment of PE Pipes:
Welding ranges:50mm -160mm
Application: PE,PP and PVDF
Working voltage:220V ±10%,50Hz
Total power:2.45 KW,including:
planning tool:0.7KW, heating plate:1.0KW, hydraulic unit motor:0.75KW;
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.
Environment temperature: -10° - 45°
Electronic count-down timer for heating and cooling time.
Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit
and support (for planning tool & heating plate)
Packaging of Butt-fusion jointing of polyethylene (PE) pipes:
Application of welding of polyethylene piping by thermofusion :
hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.
automatic butt welding machine can be operated in any complex work condition.
thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
