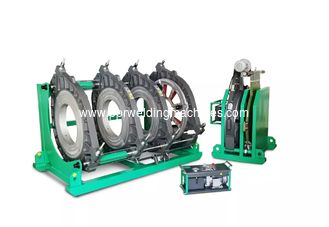

SWT-V355/90H Butt Fusion Welding Machine

SWT-V355/90H Butt Fusion Welding Machine
SWT-V355/90H Butt Fusion Welding Machine

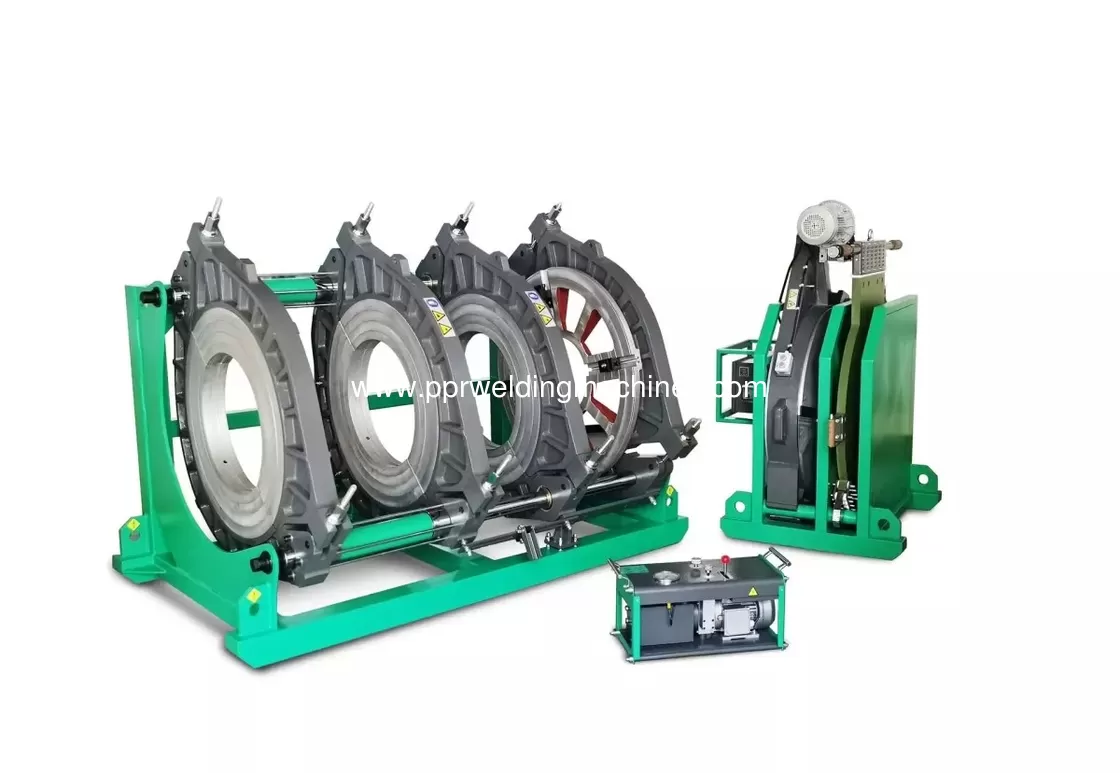

Large Image :  SWT-V355/90H Butt Fusion Welding Machine

Product Details:

Place of Origin: Hebei,China
Brand Name: MM-Tech
Certification: ISO,CE
Model Number: SWT-V355/90H

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 2700-3500/set
Packaging Details: Wooden Case
Delivery Time: 5 working days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detailed Product Description
Body Maetrial: Steel Bottom & Frame Color: Green
Standard: DVS2207-1 Guarantee Period: 2years
Voltage: 220V,50/60Hz Power(w): 2.95 KW

SWT-V355H (3"-14") Hydraulic Butt Fusion Machine

DESCRIPTION
SWT-V355H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

SWT-V355H includes:
*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).

SWT-V355/90H Butt Fusion Welding Machine 0
FEATURES

Welding ranges: plastic pipes 90mm-355mm
Reducing Inserts 90 mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm
Ranges of application PE,PP and PVDF
Working voltage ~220V±10%,50/60Hz
Total power 5.35 kW
Planning tool 1.1 kW
Heating plate 3.5 kW
Hydraulic unit motor 0.75 KW
Environment temperature -10° ~ 45°
