Product Details:
Payment & Shipping Terms:
|
Brand: | MM-Tech | Model: | SWT-NS800D |
---|---|---|---|
Power: | 800w | Overlap Width: | 10cm |
Welding Speed: | 1.5-5.0m/min | Temperature: | 20-450℃ Adjustable |
Seam Width: | 12.5mm*2 Interior Cavity 12mm | Welding Thickness: | 0.2-1.5mm |
Warranty: | 2 Years | Application: | HDPE,PVC,PP,etc |
Voltage: | 110V/220V | Frequency: | 50-60HZ |
Weight: | 5kg |
Description of Hot Wedge Welder
SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.
It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
Technical Parameters For Geomembrane hot wedge welder SWT-NS800D
Voltage: | 220V |
Frequency: | 50/60Hz |
Power: | 800W |
Welding Speed: | 0.5-5 m/min |
Heating temperature: | 20~450°C |
Thickness of material to be welded: | 0.2mm-1.5mm |
Welding width: | 12.5mm×2 |
Interior Cavity: | 12mm |
Seam strength: | ≥85% base material (tensile resistant in shear direction) |
Overlap width: | 10cm |
Weight | 5kg |
Insulation class | class II |

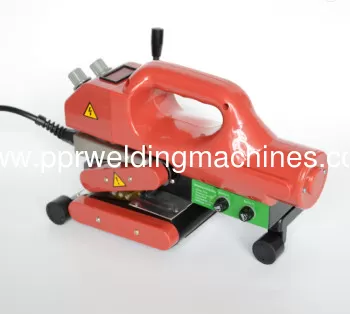

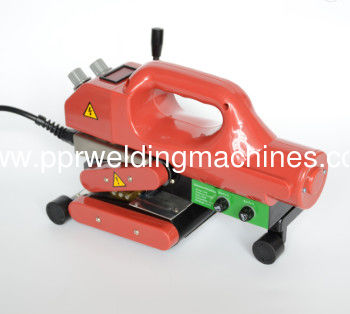

Images of Hot Wedge Welder:

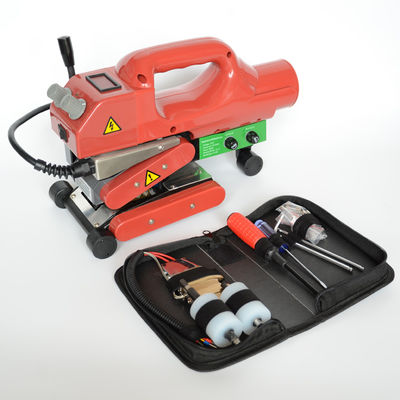

Each set includes: machine + extra hot wedge + silica gel pressure roller + disassembly tools + fuses + manual book + aluminum box + carton
FEATURE
we offer two sets of pressure rollers with the machine:SILICA GEL PRESSURE ROLLER and STEEL PRESSURE ROLLER.
silica gel pressure roller used for PVC membrane or thin membrane.
steel pressure roller used for HDPE, LDPE PP membrane or thick membrane.
Packaging of geomembrane welding wedge welders hot air weld machine:
PACKING SIZE: 370 * 240* 285 mm
Application of Hot Wedge Welding Machine:
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP .
Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.
