|Model:||SWT-NS900||Thickness Of Material:||1.0-3.0mm|
|Welding Temp:||20-450℃||Welding Speed:||0.5-5.0m/min|
|Power:||1800w||Overlap Width:||120 Mm|
|For Application Range:||Welding HDPE,LDPE, EVA,PVC,ECB,PP And Other Hot Melt Material||Place Of Origin:||China|
Description of Hot Wedge Welder
SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.

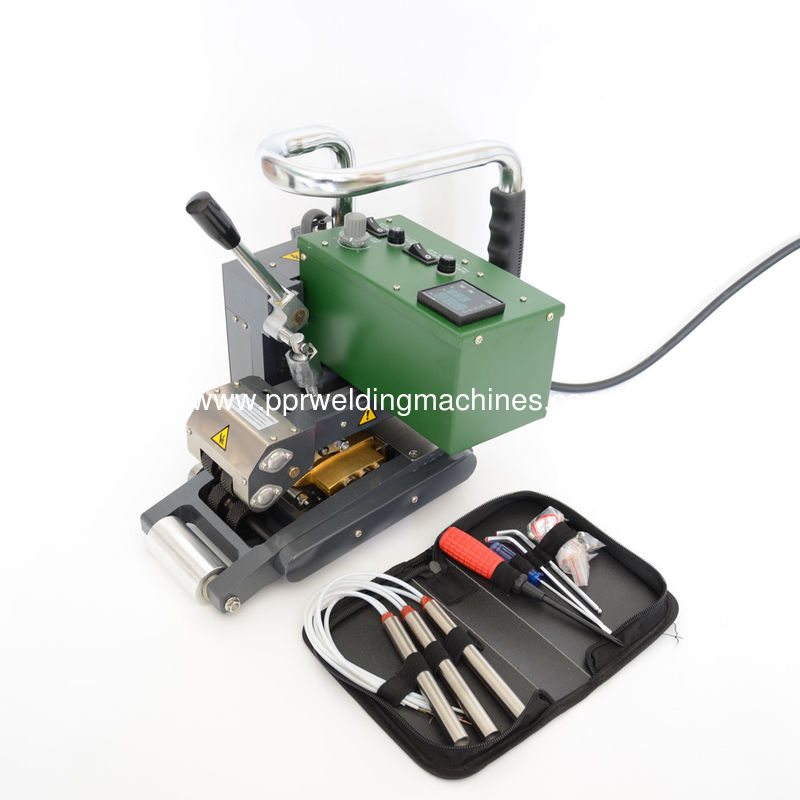

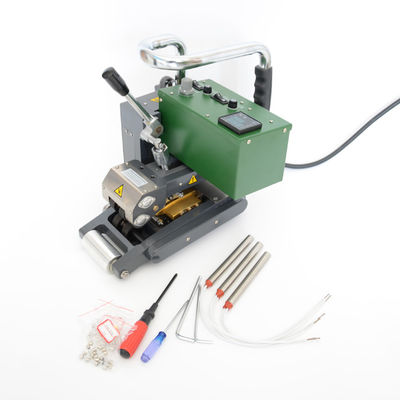

Images of Hot Wedge Welder:
Technical Parameters For Geomembrane hot wedge welder PE PVC welder:
Geomembrane wedge Welder geomembrane wedge welding machine SWT-NS900
The temperature of Heating up:0~450℃
The thickness of welding material:1.0mm~3.0mm
Welding width:15mm×2 Interior Cavity:15mm
Seam strength≥85% base material
Insulation class:class II
|Welding Speed||0.5-5 m/min|
|Thickness of material||1.0-3.0 mm|
|Welding width||15 mm *2, interior cavity 15 mm|
|Overlap width||120 mm|
|Seam Strength||≥85% base material ( tensile resistant in shear direction)|
Packaging of geomembrane welding wedge welders hot air weld machine:
Application of Hot Wedge Welding Machine:
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP and HDPE,EVA,PP.
Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.
