Tube Diameter: | 710-1000MM | Dimensions: | Volume:14.1M3 |
---|---|---|---|
Weight: | 2600KGS | Usage: | PE,PP And PVDF |

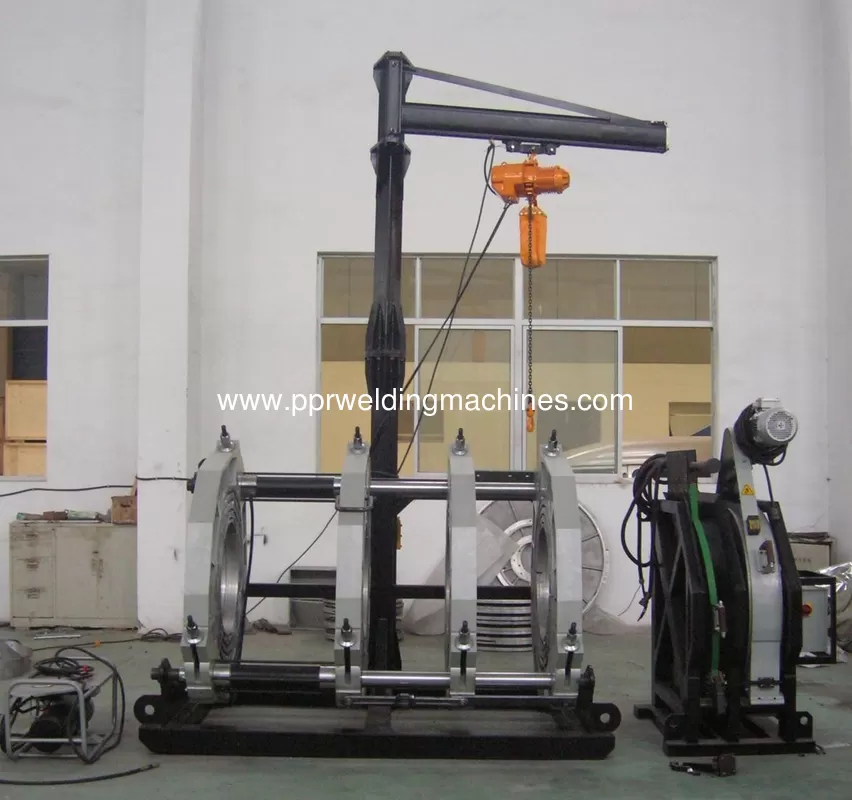

PE Pipe Welding Machine SKC-B1000/710H
Application
Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.
Features
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
Changeable welding position brings more convenience while various fitting.
Technical specifications
Welding ranges: plastic pipes:710mm-1000mm
(710mm-800mm-900mm-1000mm)
Ranges of application: PE,PP and PVDF
Working voltage: ~380V ±10%,50Hz
Total power: 22.7 kW, including: planning tool:2.2 kW, heating plate:17.5kW, hydraulic unit motor: 3kW
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.
Environment temperature: -10° ~ 45°
Electronic count-down timer for heating and cooling time ;
Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit, support (for planning tool & heating plate) and crane
hine consists of basic frame, heating plate, planning tool, hydraulic unit, support (for planning tool & heating plate) and crane.
